Layout

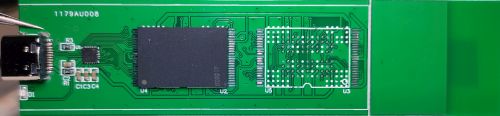

FC1178 1154_1150
Mix
Input
Order 0
Raw Cut
Block 0x28DA000/0x7A8E000
Xor 21cd
Page 0x4000
Group 4
Divide
Field Block Number
Value 0x900
Assembler
Block Number
Block Size 0x2400000
Bank Space 0x4000
Banks 00 / 0x000 / 0x1de
Actions
Scan
Comments
by Arvika
Use RAW cut different for each plane
Plane0 - 0x28DA000/0x7A8E000
Plane1 - 0/0x28DA000/0x28DA000/0x51B4000
Plane2 - 0/0x51B4000/0x28DA000/0x28DA000
Plane3 - 0/0x7A8E000/0x28DA000
Save each image as Disk0-3
Join by dump Disk0, Disk1,Disk2,Disk3
Save as disk_final.image
RAW scan give 99,9% good photos
After additional work it is possible rebuild FS
