FC2234
|
| |||
|
|

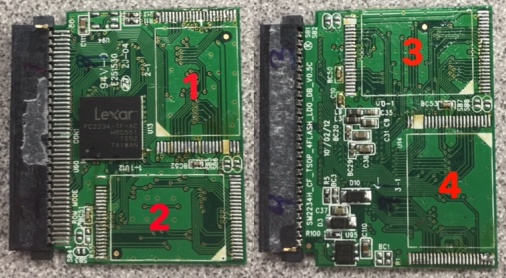

| FC2234-TF-AB 2c 48 04 46 4x2 |
Layout
SM3254 2160_2152 JBB4 Invert
Mix
Input
Order 4/2/0/6/5/3/1/7
Join by Byte
Parts 4
Data false
Block Cut
Block 0x10000/0x8000/(0x8000/0x8000)*61/0x8000/0x10000
Block Pair
Block 0x200000
Page 0x4000
Join by Page
Parts 2
Page 0x8000
Assembler
Block Number
Block Size 0x800000
Bank Space 0x4000
Banks 00 / 0x000 / 0x3ff
Actions
Scan
Comments
Serg for forum 10479

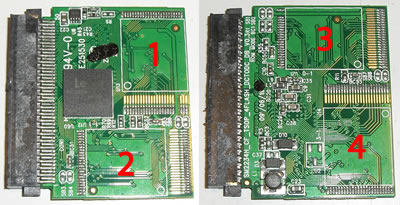

| FC2234-TF-AB 2c 68 04 46 4x2 |
Layout
SM3254 2160_2152 JBB4 Invert
Mix
Input
Order 4/2/0/6/5/3/1/7
Join by Byte
Parts 4
Data false
Block Pair
Block 0x400000
Page 0x4000
Join by Page
Parts 2
Page 0x8000
Assembler
Block Number
Block Size 0x1000000
Bank Space 0x4000
Banks 00 / 0x000 / 0x7ff
Actions
Scan
Comments
Serg for forum 7553
FAT was erased
Got photos with Raw Recovery
| FC2234-TF-AB ec d5 14 b6 2x4 |
Layout
SM3254 1056 JBB
Mix
Input
Order 0/4/1/5/2/6/3/7
Join by Byte
Parts 2
Data false
Block Pair
Block 0x100000
Page 0x2000
Join by Page
Parts 2
Page 0x4000
Join by Dump
Parts 2
Assembler
Block Number
Block Size 0x400000
Bank Space 0x4000
Banks 00 / 0x000 / 0xfff
Actions
Scan
Comments
Serg for forum 5973
|
|
| FC2234-TF-AB ec d7 d5 29 4x1 |
Layout
SM3254 2160_2152 JBB4 Invert
Mix
Input
Order 2/1/0/3
Join by Byte
Parts 4
Data false
Block Pair
Block 0x200000
Page 0x4000
Block Pair
Block 0x200000000
Page 0x8000
Assembler
Block Number
Block Size 0x800000
Bank Space 0x4000
Banks 00 / 0x000 / 0x7ff
Actions
Scan
Comments
by Karol
perfect recovery!
many thanks to Sergey for help!!!
| FC2234-TF-AC 2c 48 04 4a 4x2 |
Layout
SM3254 2160_2152 JBB4
Mix
Input
Order 4/2/0/6/5/3/1/7
Join by Byte
Parts 4
Data false
Block Pair
Block 0x400000
Page 0x4000
Join by Page
Parts 2
Page 0x8000
Assembler
Block Number
Block Size 0x1000000
Bank Space 0x4000
Banks 00 / 0x000 / 0x3ff
Actions
Scan
Comments
Serg for forum 8692
| FC2234 2c 48 04 46 4x2 |
Layout
SM3254 2160_2152 JBB4 Invert
Mix
Input
Order 6/0/2/4/7/1/3/5
Join by Byte
Parts 4
Data false
Block Pair
Block 0x400000
Page 0x4000
Join by Page
Parts 2
Page 0x8000
Assembler
Block Number
Block Size 0x1000000
Bank Space 0x400
Actions
Scan
Find Bank Size
Comments
By aj2008
100% Recovery
