AU6990

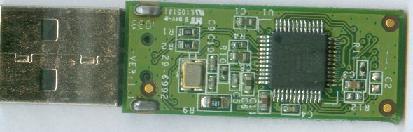

AU6990 2c 88 04 4b 1x1 |
Layout
AU6990 1078
Mix
Input
Order 0
Block Pair
Block 0x200000
Page 0x2000
Assembler
Block Number
Block Size 0x400000
Bank Space 0x400
Actions
Scan
Find Bank Size
Comments
KostikN 15.06.2012
Perfect result
AU6990 2c 88 04 4b 2x1 |
Layout
AU6990 1078
Mix
Input
Order 1/0
Join by Byte
Parts 2
Data false
Block Pair
Block 0x400000
Page 0x4000
Assembler
Block Number
Block Size 0x800000
Bank Space 0x400
Actions
Scan
Find Bank Size
Comments
Serg for forum 6930
AU6990 45 c7 98 b2 1x1 |
Layout
AU6990 1070 Xor 6771_64
Mix
Input
Order 0
Assembler
Block Number
Block Size 0x180000
Bank Space 0x400
Actions
Scan
Find Bank Size
Comments
Serg for forum 4082
100% recovery
AU6990 89 88 24 4b 1x1 |
Layout
AU6990 1078
Mix
Input
Order 0
Block Pair
Block 0x200000
Page 0x2000
Assembler
Block Number
Block Size 0x400000
Bank Space 0x400
Actions
Scan
Find Bank Size
Comments
KostikN 25.06.2012 Need correct bank size
AU6990 89 88 24 4b 1x4 |
Layout
AU6990 1070 Xor 6771_256_SA
Mix
Input
Order 0/1/2/3
Cross Bank
Block 0x200000
Bank 0x800
Join by Dump
Parts 4
Assembler
Block Number
Block Size 0x200000
Bank Space 0x800
Image Cut
Actions
Scan
Read Bank Size
Comments
Serg for forum 9502
Controller name: IDE 5019SN G-1
AU6990 98 d7 98 b2 2x1 |
Layout
AU6990 1070 Xor 6771_192 v3
Mix
Input
Order 1/0
Join by Byte
Parts 2
Block Pair
Block 0x300000
Page 0x4000
Assembler
Block Number
Block Size 0x600000
Bank Space 0x400
Actions
Scan
Find Bank Size
AU6990 ad d7 94 25 2x4 |
Layout
AU6990 1070
Mix
Input
Order 4/0/5/1/6/2/7/3
Join by Byte
Parts 2
Data false
Block Pair
Block 0x100000
Page 0x2000
Join by Page
Parts 2
Page 0x4000
Join by Dump
Parts 2
Assembler
Block Number
Block Size 0x400000
Bank Space 0x400
Actions
Scan
Find Bank Size
Comments
Serg
100% recovery
AU6990 ec d5 84 72 1x1 |
Layout
AU6990 1078
Mix
Assembler
Block Number
Block Size 0x100000
Bank Space 0x400
Actions
Scan
Find Bank Size
Comments
Serg for forum 4218
100% recovery
AU6990 ec d7 94 72 2x2 |
Layout
AU6990 1078
Mix
Input
Order 0/2/1/3
Join by Byte
Parts 2
Data false
Block Pair
Block 0x200000
Page 0x4000
Join by Page
Parts 2
Page 0x8000
Assembler
Block Number
Block Size 0x800000
Bank Space 0x400
Actions
Scan
Find Bank Size
Comments
by Mikhail Olin
AU6990 ec de d5 7a 1x1 |
Layout
AU6990 1078 Xor 6771_128
Mix
Input
Order 0
Block Pair
Block 0x100000
Page 0x2000
Assembler
Block Number
Block Size 0x200000
Bank Space 0x400
Actions
Scan
Find Bank Size
Comments
Serg for forum 4539
AU6990 ec de d5 7a 1x2 |
Layout
AU6990 1078 Xor 6771_128
Mix
Input
Order 0/1
Block Pair
Block 0x100000
Page 0x2000
Join by Dump
Parts 2
Assembler
Block Number
Block Size 0x200000
Bank Space 0x400
Banks 00 / 0x000 / 0x3b7
01 / 0x000 / 0x3be
02 / 0x000 / 0x3bc
03 / 0x000 / 0x3be
04 / 0x000 / 0x3bc
05 / 0x000 / 0x3be
06 / 0x000 / 0x3bc
07 / 0x000 / 0x3be
Actions
Scan
Comments
by Vlad forum 5374
perfect recovery
AU6990 ec de d5 7a 2x2 |
Layout
AU6990 1078 Xor 6771_128_JBB
Mix
Input
Order 2/0/3/1
Join by Byte
Parts 2
Data false
Block Pair
Block 0x200000
Page 0x4000
Join by Dump
Parts 2
Assembler
Block Number
Block Size 0x400000
Bank Space 0x400
Scan Max 8
Actions
Scan
Find Bank Size
Comments
Serg for forum 4457
100% result
Bank Sizes detects from, use Check_Dirs
There is some red spaces on ECC map, so i set Scan Max 8
